1 ) WIRELESS
- Standards : Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds: N300 2.4 GHz: 300 Mbps (802.11n)
- WiFi Range : 2 Bedroom Houses, 3× Fixed Antennas, Multiple antennas form a signal-boosting array to cover more directions and large areas
- WiFi Capacity: Legacy

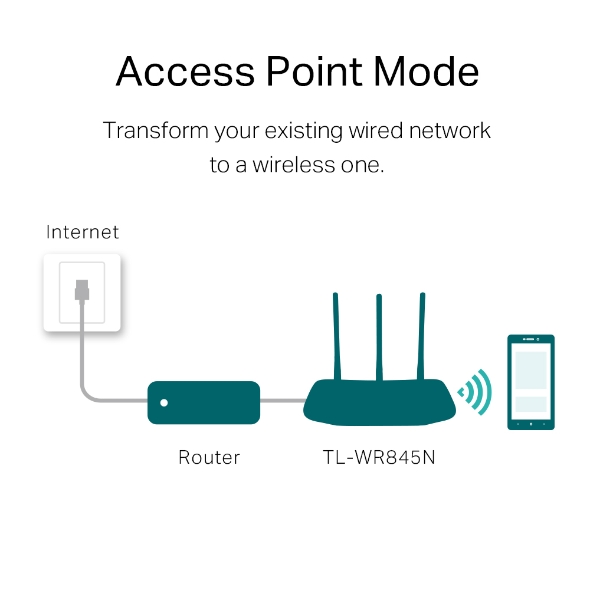

- Working Modes: Router Mode, Access Point Mode, Range Extender Mode, WISP Mode
2) SECURITY
- Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
- Guest Network: 1× 2.4 GHz Guest Network
- WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
3) HARDWARE
- Processor: Single-Core CPU
- Ethernet Ports: 1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports
- Buttons: WPS Button, Reset Button
- Power: 9 V ⎓ 0.6 A
4) SOFTWARE
- Protocols: IPv4, IPv6
- Parental Controls: URL Filtering, Time Controls
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Quality of Service: QoS by Device
- NAT Forwarding: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
- IPTV: IGMP Proxy, IGMP Snooping
- DHCP: Address Reservation, DHCP Client List, Server
- DDNS: NO-IP, DynDNS
5) Management :Tether App
6) OTHER
- System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)
7) Certifications: FCC, CE, RoHS
8) Environment
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
9) TEST DATA
- WiFi Transmission Power
CE:<20dBm(2.4GHz)
FCC:
<30dBm
- WiFi Reception Sensitivity
270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -93dBm@8% PER
6M: -95dBm@10% PER
1M: -98dBm@8% PER
10) PHYSICAL
- Dimensions: (W×D×H) 9.1 × 5.7 × 1.4 in
(230 × 144 × 35 mm) - Package Contents: Wi-Fi Router TL-WR845N, Power Adapter, RJ45 Ethernet Cable, Manual
